Chapter 1.2 Summary — Memory Organization, Caching, and Multiprocessors

Memory Design

• Key trade-offs:
  1. Capacity
  2. Access time
  3. Cost per bit
• Solution: Memory hierarchy — combine fast small memory with slower large memory

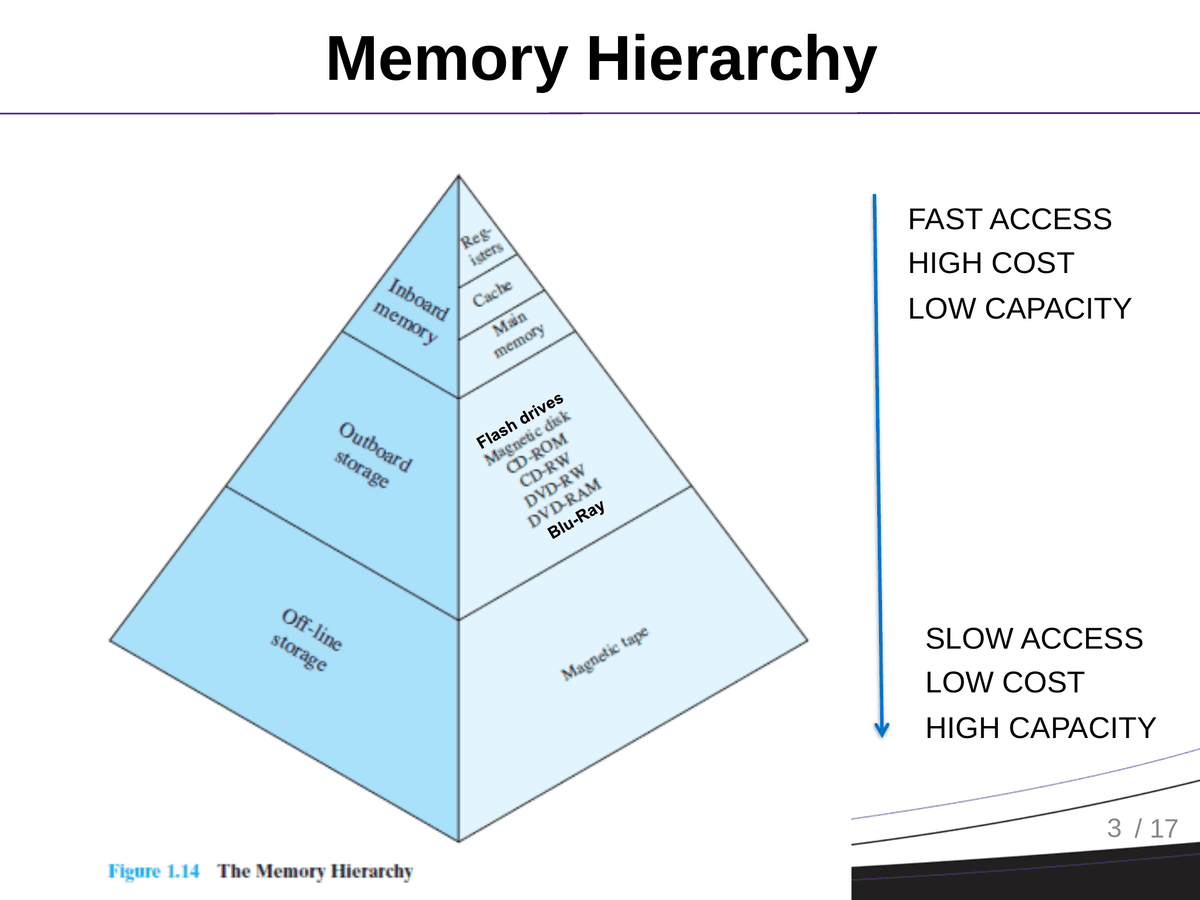

Memory Hierarchy

• Upper levels: faster, more expensive, smaller
• Lower levels: slower, cheaper, larger

Access Frequency & Hit Ratio

• High probability of accessing fast memory = effective hierarchy
• Definitions:
  • T1: access time to fast memory
  • T2: access time to slow memory
  • H: hit ratio (% of accesses in fast memory)

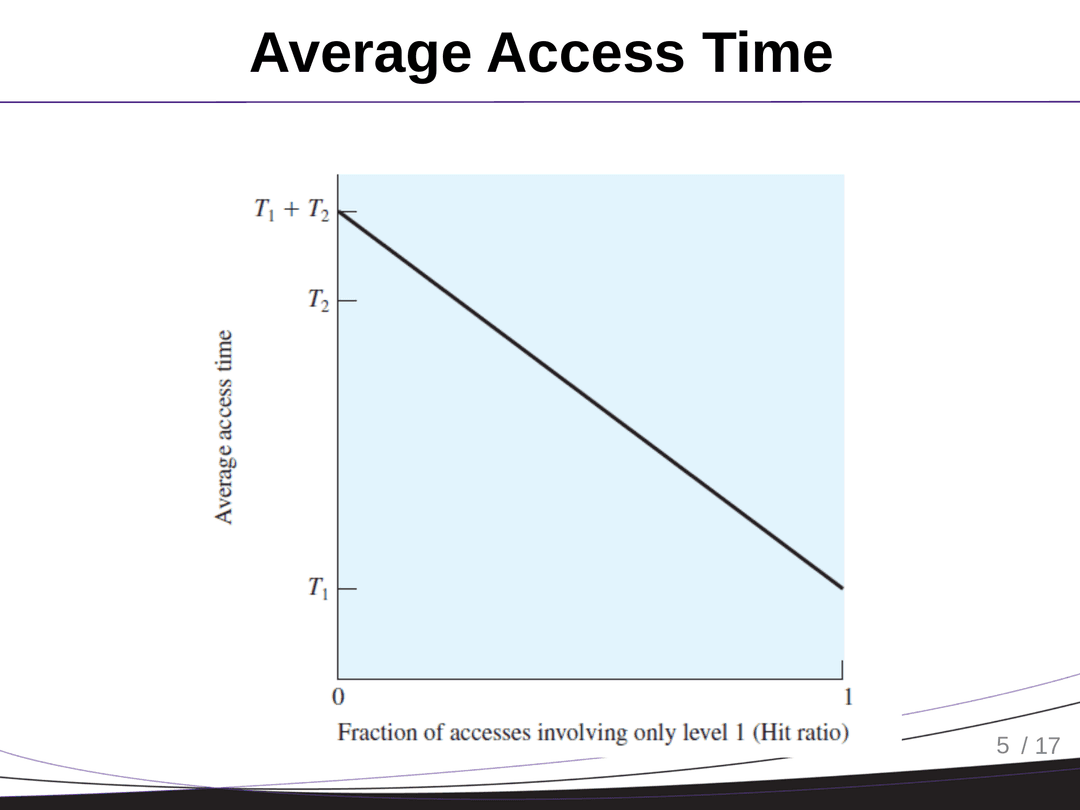

Average access time:

Locality of Reference

Memory references by the processor tend to cluster.

• Temporal Locality: reuse of same memory location soon
• Spatial Locality: accessing nearby addresses

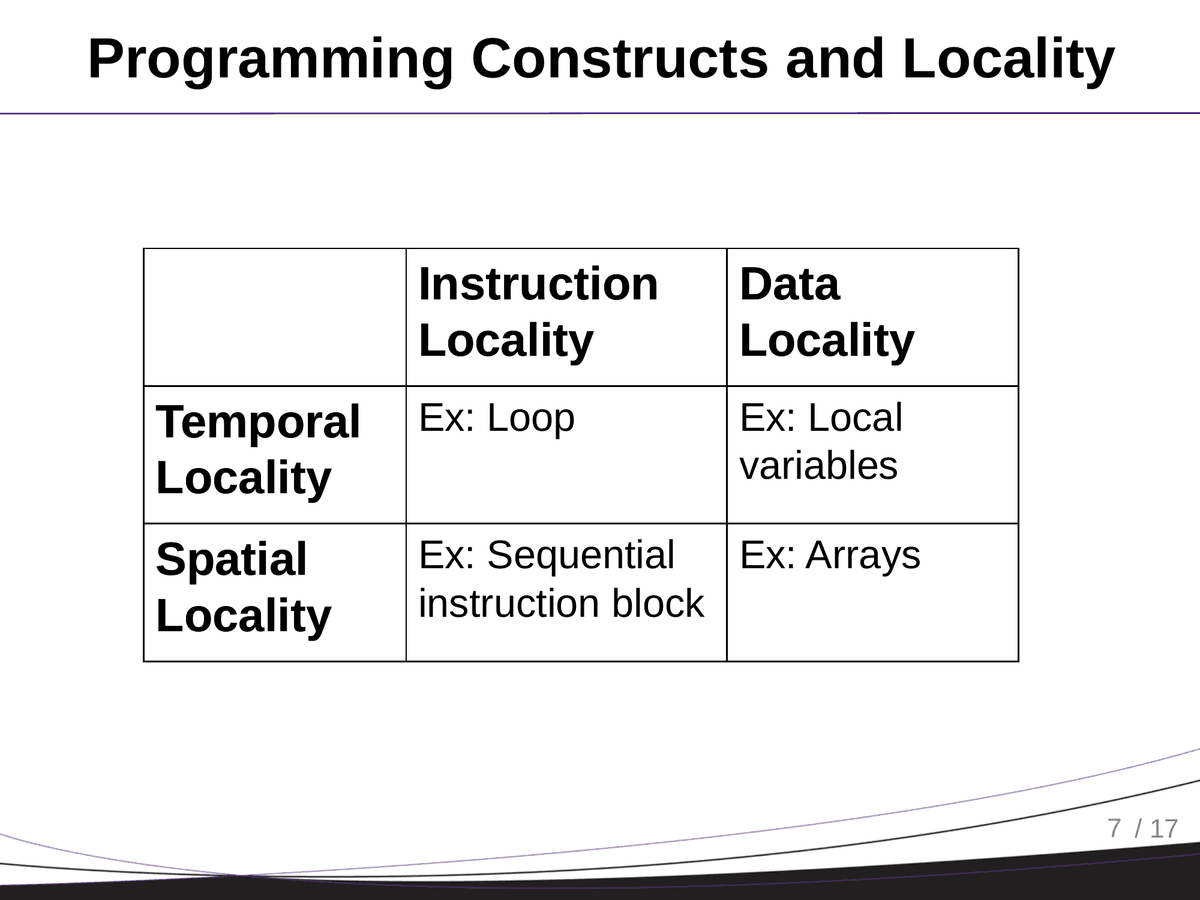

Examples:

• Temporal: loop counters, local variables
• Spatial: array elements, sequential instruction blocks

Cache Memory

• Bridge between CPU and main memory
• Mitigates growing gap between CPU speed and memory access time

Cache Design Considerations

• Cache Size: Cost vs Hit ratio; small size can have high impact on performance.
• Block Size: Larger blocks exploit spatial locality but increase miss penalty.
• Mapping and Replacement: How do we keep track of which blocks are loaded in cache? How do we decide which block is replaced if cache if full?
• Write Policy: When do we write modified location to main memory? 12
• Multiple levels common (e.g., L1, L2, L3)

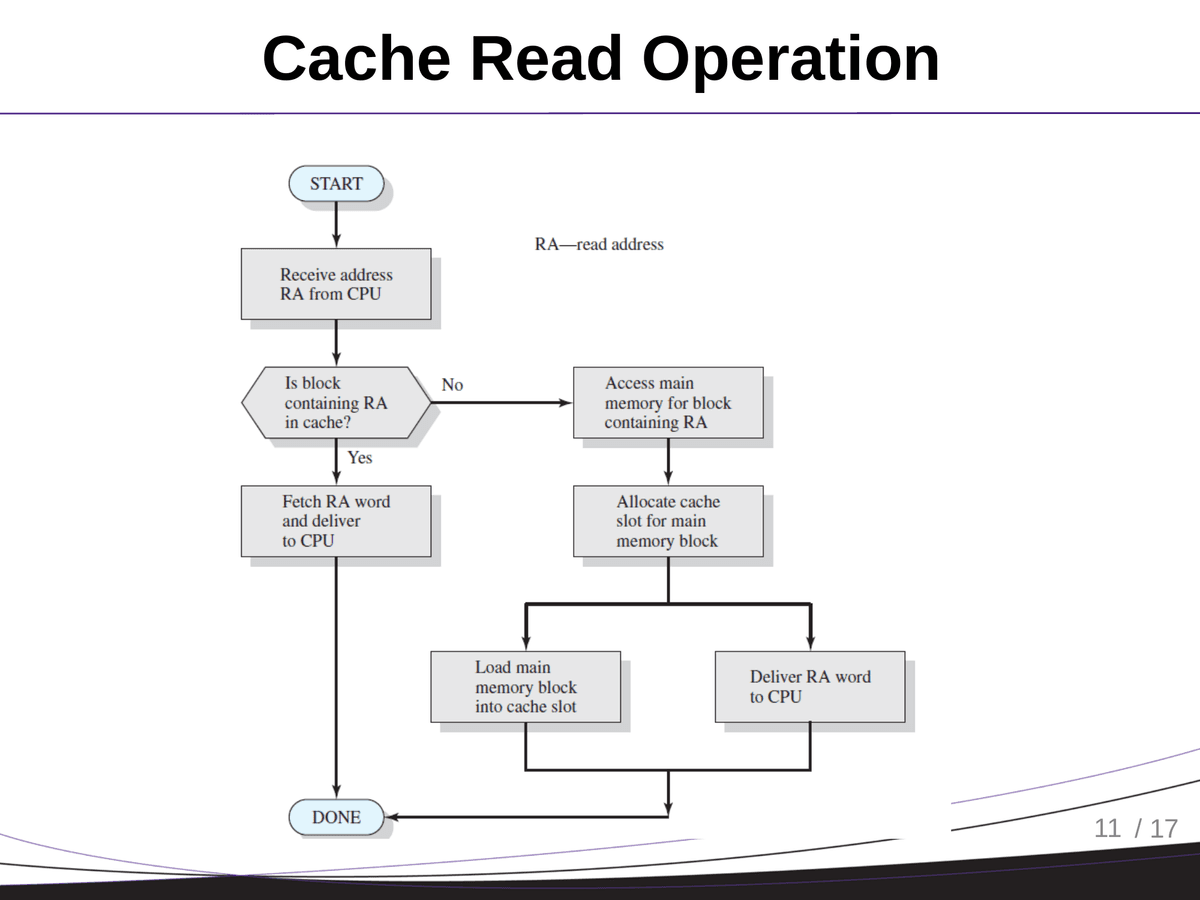

Cache Read Cycle:

Software-Managed Caches

• OS-level caching (e.g., disk cache) handles slow peripherals
• Exploits locality in software-controlled fashion

Multiprocessors

• Systems with 2+ processors working together
• Advantages:
  1. Performance (More processes do more work)
  2. Availability (fault tolerance)
  3. Scalability (add more cores)

Symmetric Multiprocessors (SMP)

• Shared memory & I/O
• Uniform memory access times
• Processors perform the same functions.
• Single OS controls the system

Multicore Processors

• Special case of SMP: all cores on one chip
• Private L1 cache, shared L2/L3
• Cache architecture has significant impact on processor scheduling.
  • Migrating tasks across different caches is expensive.

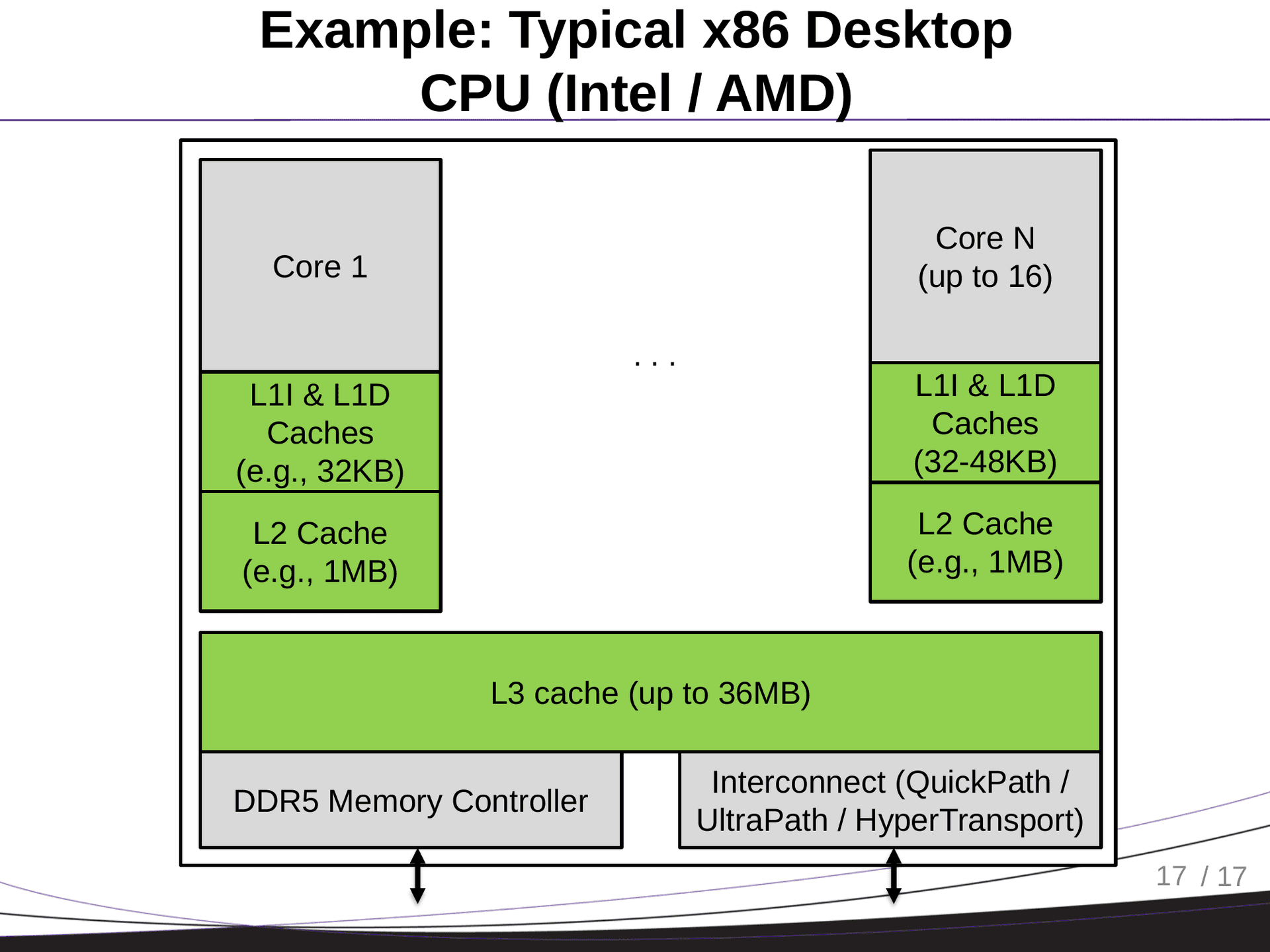

Example x86 CPU Layout

That wraps up Chapter 1.2
